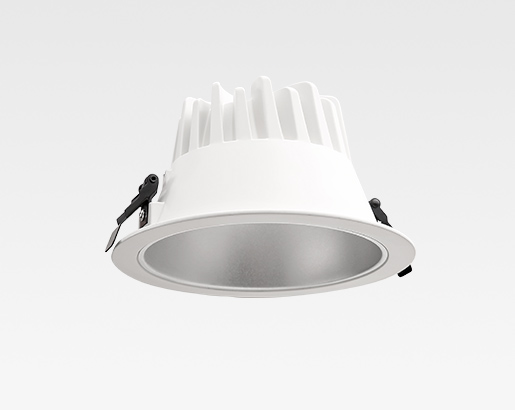

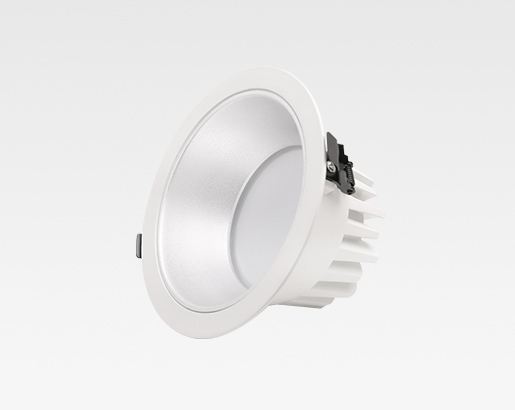

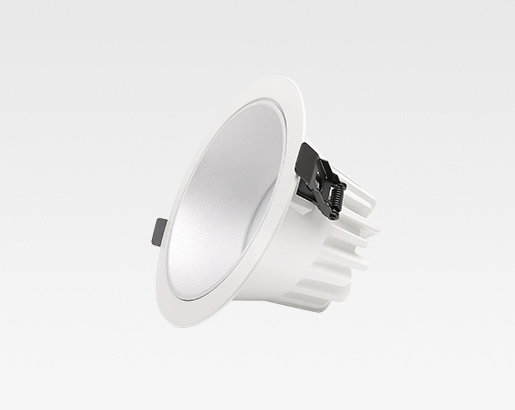

Recessed LED Downlights - SMD Type

LC-BT1101-25W

High quality, cost-effective general lighting solution with symmetrically placed mid-power SMD LEDs for perfectly homogeneous light. SMD-Chips with an excellent performance and lumen maintenance over its service life.

Colors:

Degrees:

  • 90°

Enquiry

Product Description:

Model No.: LC-BT1101-25W
Power: 25W
Light Source: SMD3030
Driver: BOKE or Philips Driver
Input Voltage: 220-240V AC 50/60Hz
Dimension: D161*H91mm
Cut-Out: D140mm
CCT: 2700K, 3000K, 4000K, 5000K
Luminous Flux: 2170lm
Housing Color: White
CRI: Ra>80
Beam Angle: 90°
Operating Temperature: -40℃ - 50℃
Rated Lifetime: Above 40000hs
Certification: CE, RoHS
Warranty: 3-5 Years

Applicable Scope:

  • Offices
  • Shopping malls
  • Fashion Stores
  • Stations
  • Supermarkets
  • Exhibitions
  • General lighting
  • Residential

Features:

  1. Anti-Glare Design, High CRI, High efficiency, High illumination.
  2. Die-casting ADC12 Aluminum, powder painting, acid and alkali resistance, oxidation resistance.
  3. Non-flicker driver from BOKE and Philips for superior surrounding lighting requirement, with comfortable illumination.
  4. Various power options from 7W, 12W, 18W, 25W to 30W, to meet different requirements for general lighting.
  5. Selection of dimming drivers including 1-10V, Triac and DALI Dimmable, Emergency kit and Sensor available.

Download:

 BT1101 Datasheet
