Recessed LED Downlights - SMD Type

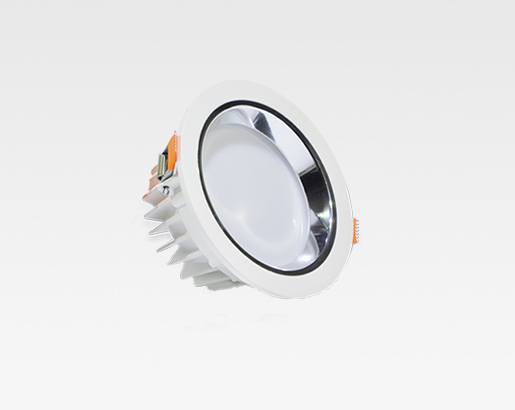

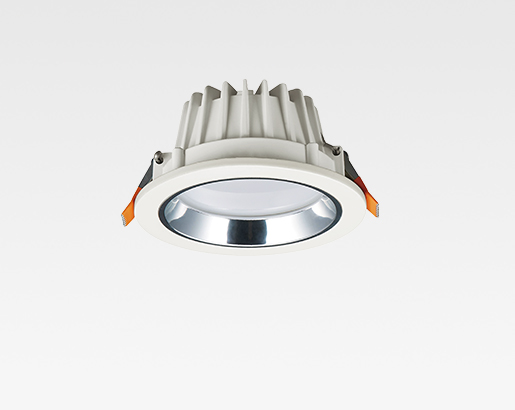

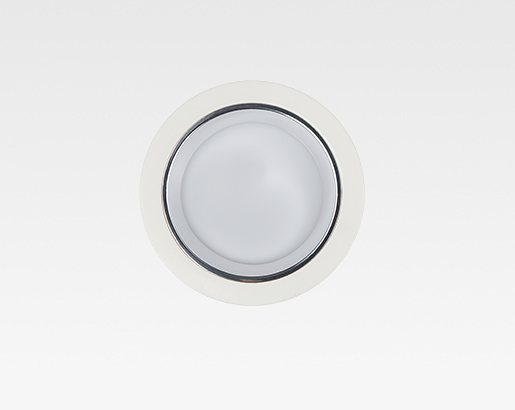

LC-SMD04-15W

High quality, cost-effective general lighting solution with symmetrically placed mid-power SMD LED for perfectly homogeneous light. SMD-Chips with an excellent performance and lumen maintenance over its service life.

Colors:

Degrees:

  • 95°

Enquiry

Product Description:

Model No.: LC-SMD04-15W
Power: 15W
Light Source: SMD2835
Driver: BOKE or Philips Driver
Input Voltage: 220-240V AC 50/60Hz
Dimension: D142*H66mm
Cut-Out: D127-134mm
CCT: 2700K, 3000K, 4000K, 5000K
Luminous Flux: 1050lm
Housing Color: White
CRI: Ra>80
Beam Angle: 95°
Operating Temperature: -40℃ - 50℃
Rated Lifetime: Above 40000hs
Certification: CE, RoHS
Warranty: 3-5 Years

Applicable Scope:

  • Offices
  • Shopping malls
  • Fashion Stores
  • Stations
  • Supermarkets
  • Exhibitions
  • General lighting
  • Residential

Features:

  1. Five different diameter sizes provide a full range of lumen output options to meet diverse requirements.
  2. Die-casting ADC12 Aluminum,powder painting, acid and alkali resistance,oxidation resistance.
  3. Non-flicker driver from BOKE and Philips for superior surrounding lighting requirement, with comfortable illumination
  4. Various power options from 5W,10W,15W,20W to 30W, to meet different requirements for general lighting.
  5. Selection of dimming drivers including 1-10V, Triac and DALI Dimmable, Emergency kit and Sensor available.

Download:

 SMD04 Datasheet
